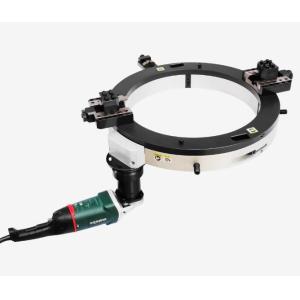

Split Frame Pipe Cutting And Beveling Machine With Electric Driven Wide Range

Pipe Cutting and beveling Machine:

The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 2” to 48” O.D.(DN50-1200mm), on most wall thicknesses and material. The series machine is ideal for all types of pipe cutting, beveling and end preparation.

• Split Frame
• Cold Cutting/Beveling improve safety
• Cut or Cut/Bevel simultaneous
• Low Axial & Radial Clearance
• Tool feed automatically
• Easy install & Operation
• Pneumatic, Electric and Hydraulic type for option
• Machining OD of pipe from 2” up to 48”

• Driven options: Pneumatic, Hydraulic or Electric
• Air requirement: 1500L-3000L/Min@0.6/0.7Mpa
• Hydraulic requirement: 2-60L/Min@12.5Mpa
• Electric requirement: 220-240V 1PH 50/60HZ
• Feed mode: Star wheel, automatically
• Feed rate: Fixed@0.08mm per circle
• Packaging: Plywood case

Suggest: size 1066 and above size select and use hydraulic type

Suggest: if any other welding seam or special demand, please better to advise us before you place the order.

Chemical plant: 24" Phenol Pipeline Maintain

Owner: FORMOSA PHENOL(NINGBO) LIMITED COMPANY
Project: 24” Phenol pipe line maintenance
Site: Ningbo China
Date: 17^th Sep. 2016

This project finished in Sep.2016. It’s a rental project, owner required NODHA supply the 24”

cold cutting machine and operator, owner supply the lifting equipment.

On site cold cutting in chemical plant require explosion proof operation, so we bring ODP-610 go to the site.

Before you place order to us, please let us know the following information:

• Choose the right size

• Advise us the driven options: Pneumatic, Electric or Hydraulic

• Advise us the body options: Steel body or Aluminum body

• Confirm electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)

After-sale Service

1. ​Warranty period: 12 months(Electric motor 6 months)
2. Emergency spare parts required dispatched within 24 hours
